Steel Frame Modular Builds for Extensions and Garden Pods
Homeowners are increasingly turning to modern, sustainable, and efficient construction methods. One standout innovation is the Steel Frame Modular Extension—a faster, more energy-efficient alternative to traditional brick builds. Whether you’re considering a new rear extension, a stylish garden office, or a luxury garden pod, modular steel frame construction offers unmatched advantages. At Vergolus, we specialise in delivering high-performance modular building systems using galvanised steel frames that outperform and outlast traditional materials.What is a Steel Frame Modular Extension?

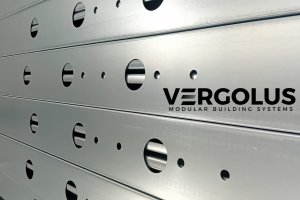

A Steel Frame Modular Extension is a prefabricated structure constructed off-site and assembled on your property in a fraction of the time of a conventional build. The system is based around a high-strength galvanised steel frame that serves as the primary structural support.
Compared to timber or brick, steel offers unmatched structural integrity, flexibility in design, and long-term reliability. These buildings are not only robust but also thermally efficient, quick to assemble, and built to comply with all current UK building regulations.
Benefits of Steel Frame Modular Builds
Faster Construction with Less Disruption
Traditional building methods often involve prolonged timelines, weather delays, and messy construction zones. Steel frame modular systems are built in controlled factory environments, meaning your extension or garden pod can be installed and ready in weeks—not months.
Exceptional Structural Strength
Steel is one of the most durable materials in construction. It resists warping, cracking, and pest damage, offering a solid foundation that lasts for decades. Vergolus uses galvanised steel, which resists corrosion and increases lifespan—perfect for UK weather.
Space-Saving Wall Design
Vergolus steel frame walls are only 220mm thick, compared to traditional cavity wall thicknesses of around 350mm. With insulation performance equal to traditional builds (U-value of 0.18 W/m²K), you get more internal floor space—up to 25% more room in some cases!
Environmentally Friendly
Steel is recyclable, and our modular systems produce less waste than conventional building sites. Plus, improved insulation reduces heating needs, lowering your carbon footprint.
Pre-Approved by Building Control
Our modular buildings are pre-approved to meet or exceed Part L building regulations, ensuring full compliance with thermal performance, airtightness, and structural standards.
Stylish and Fully Customisable
From sleek garden offices to expansive open-plan extensions, steel frame modular builds offer limitless design flexibility. You can select from various exterior finishes, layouts, and glazing options to suit your taste and home architecture.
Perfect for Extensions and Garden Pods
Steel frame modular builds are ideal for:
-
Rear house extensions
-
Side-return extensions
-
Garden pods or offices
-
Granny annexes
-
Work-from-home spaces
-
Leisure rooms or gyms
Each module is designed to blend with your home or outdoor environment, providing luxury living and working spaces with minimal disruption.

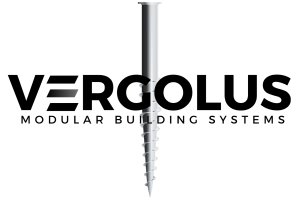

Our Sustainable Foundations with Steel Ground Screws
When it comes to creating a truly modern and environmentally conscious building system, foundations matter just as much as walls and roofs. That’s why Vergolus uses Steel Ground Screws—a cleaner, faster, and far more sustainable alternative to traditional concrete foundations.
Ground screws are already used to support bridges, oil rigs, and industrial factories, and now they’re being used to transform residential construction. Each screw is driven deep into the ground (up to 3 metres where required), creating a robust foundation capable of supporting significant structural loads with incredible durability and minimal ground disturbance.
Why Vergolus Uses Steel Ground Screws
At Vergolus, we offer a full site-specific load testing service. Before installation, our team conducts professional load tests to confirm ground conditions and structural requirements, providing load certification for submission to planning and building control authorities. This ensures peace of mind that your modular structure is compliant, safe, and secure.
Whether you’re building a small garden pod or a multi-module extension, our team can design and install a ground screw layout to suit any size steel frame.
Concrete vs Ground Screws: A Carbon Comparison
Traditional concrete foundations are carbon-intensive. On average, 1 tonne of cement produces around 1.25 tonnes of embedded CO₂. A typical foundation slab for an extension could easily involve several tonnes of concrete—leaving a large environmental footprint.
In contrast, a ground screw foundation system using just 20 screws (each weighing 8.9kg) would only generate 320.4kg of carbon emissions in total. That’s an enormous reduction in embedded carbon—and with no excavation, drying time, or disruption to your garden or driveway.
Additional Benefits
-
No digging or spoil removal
-
Installed in a single day
-
Fully removable and recyclable
-
Ideal for tree root protection zones and flood-prone areas
-
Works in almost all soil types, including clay, sand, and chalk
By combining the Vergolus precision steel modular building system with a ground screw foundation, you get a future-ready structure that’s sustainable from the ground up—literally.
Why Choose Vergolus Modular Building System?
Vergolus leads the way in modular innovation. Here’s why homeowners across the UK trust us:
-
High-performance galvanised steel frames
-
Minimum of 25-year structural warranty
-
Complies with Part L energy efficiency standards
-
Superior wall, roof, and floor insulation
-
Turnkey Service: from drawings and planning to installation
-
Custom finishes to match your existing home
Whether you’re in need of extra space for growing families or creating a productive environment away from the main house, Vergolus has the ideal steel frame solution.
Frequently Asked Questions About Steel Frame Modular Extension
-
What is a steel frame modular extension?
A steel frame modular extension is a prefabricated building system using galvanised steel as the primary structural support, designed for quick, efficient, and durable home extensions. -
Is a steel frame extension stronger than brick?
Yes, steel offers superior strength and resilience. It doesn’t crack or warp over time and withstands extreme weather better than brick. -
Will the steel frame rust?
No. Our steel is galvanised, which means it’s coated to prevent corrosion—even in damp UK conditions. -
Are steel frame extensions building regulation compliant?
Absolutely. Vergolus modular extensions are pre-approved and meet or exceed all UK Building Regulations, including Part L thermal efficiency standards. -
Can I customise the design of my steel modular build?
Yes! Our systems are fully customisable in terms of layout, materials, finishes, and features like bifold doors or roof lanterns. -
Are modular garden pods insulated?
Yes, garden pods from Vergolus include solid wall, floor, and roof insulation, making them ideal for year-round use. -
How long does it take to build a steel frame modular extension?
Most projects are completed in a matter of weeks, depending on design and site requirements—significantly faster than traditional construction. -
Is planning permission required?
Many steel modular extensions fall under permitted development rights, but we can help confirm and handle all necessary applications if needed. -
How energy efficient are steel modular extensions?
Our builds meet the latest U-value requirements:-
Walls: 0.18 W/m²K
-
Roof: 0.15 W/m²K
-
Floors: 0.18 W/m²K
-
-
What’s the warranty on a Vergolus steel frame extension?
All Vergolus modular buildings come with a minimum of 25-year structural warranty for your peace of mind.
Choose Vergolus for Your Next Modular Build
Why is a steel frame modular extensions the future of homebuilding? A Steel Frame Modular Extension is the smart choice for modern homeowners seeking space, efficiency, and long-term value. Whether it’s a stylish garden room, a functional side extension, or a luxurious home office, Vergolus delivers high-quality, regulation-compliant solutions that outperform traditional construction on every level.
With faster build times, more usable space, long-term durability, and energy efficiency—modular steel builds are the future.
